Deployment

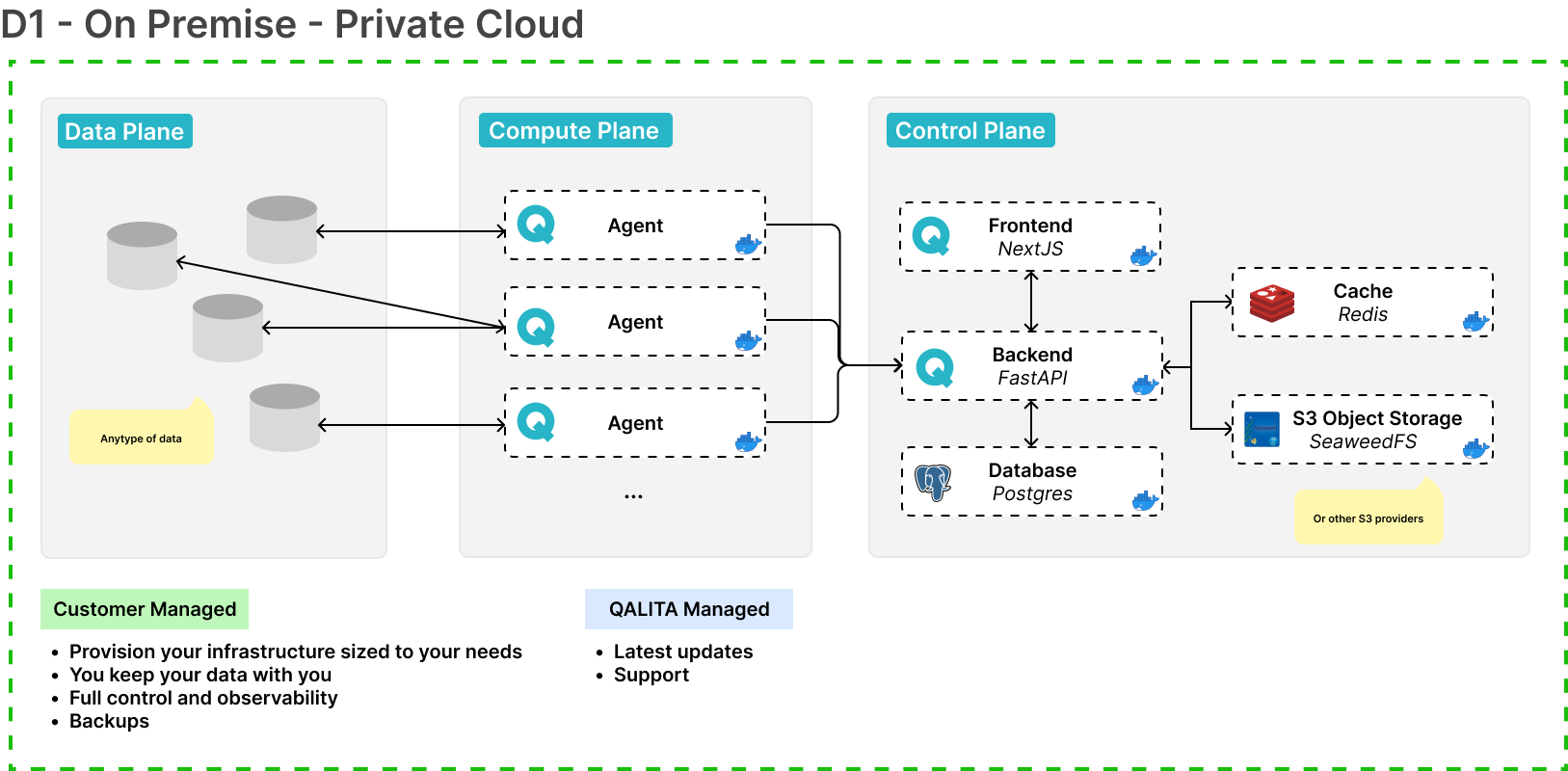

QALITA platform software architecture diagram

Find more details about qalita platform architecture.

A valid license is mandatory: the credentials are used to authenticate to the QALITA registry, which is how the platform validates the license (see how license validation works).

📀 Purchase a license or contact us for a trial key

Requirements

Compute

The platform's control plane includes the frontend with its backend and documentation. It requires minimal compute power.

OS	CPU	RAM	Storage
linux/amd64	4 vCPU	16 GiB RAM	100 GiB SSD Fast Storage

Usage	Memory	CPU
Idle	500 MiB	0.5
In Use	2 GiB	1
Optimal	4 GiB	2

Storage

Storage includes:

• The PostgreSQL relational database contains platform management data, metrics, and user activity logs.
• The Redis cache accelerates the interface and backend queries.
• SeaweedFS storage includes task logs and assets (pack archives).

Usage	PostgreSQL	SeaweedFS
Minimal	1 GiB	1 GiB
Depends on metrics volume and analysis frequency	10+ GiB	10+ GiB

Network Matrix

Component	Ingress	Service:Port	Pod
Backend Database	--	qalita-postgresql:5432	qalita-postgresql-0
Backend Caching	--	qalita-redis-master:6379	qalita-redis-master-0
Backend Object Storage	--	seaweedfs-s3:8333	seaweedfs
Backend Server	api.domain.com	qalita-backend-service:3080	qalita-backend
Documentation	doc.domain.com	qalita-doc-service:80	qalita-doc
Frontend	domain.com	qalita-frontend-service:3000	qalita-frontend

info

QALITA Workers must be able to communicate with the backend of the control plane. Ensure network access to the backend's Ingress Point (endpoint or URL)!

Cloud SaaS

QALITA Platform offers a fully managed solution hosted on European HDS and SecNumCloud.

QALITA platform architecture in SaaS mode

Sign up for free on the SaaS platform

Kubernetes

QALITA platform architecture deployed on Kubernetes

Requirements

To deploy on a managed Kubernetes cluster, you will need:

• A Kubernetes cluster
• Kubernetes 1.24+
• Helm 3.0+
• Cert-Manager 1.0+

Dependencies

• seaweedfs
• postgresql
• redis

Helm Chart

tip

For the most up-to-date Helm chart documentation: Go directly to ArtifactHub

1. Create a Namespace

Create a qalita namespace in your Kubernetes cluster.

2. Add the Chart Repository

helm repo add qalita https://helm.qalita.io/
helm repo update

3. Resolve Dependencies

helm dependency update

4. Install

You must override the default configuration using a values.yaml file.

tip

You will need to modify the values to best fit your organization. See an example values file

helm install qalita qalita/qalita -f values.yaml

5. Usage

The chart deploys the following resources:

• QALITA Application
• QALITA API
• QALITA Documentation
• QALITA PostgreSQL Database
• QALITA Redis Cache Database
• QALITA S3 Storage SeaweedFS

With cluster.domain=example.com, the following endpoints are created:

• https://example.com
• https://api.example.com
• https://doc.example.com

Values

warning

For production use, it is highly recommended to deploy the platform on a managed Kubernetes cluster. QALITA offers a fully managed solution hosted on European HDS and SecNumCloud. Contact us

Docker Compose

See the tutorial: Docker Compose Deployment

Custom CA Certificates (internal PKI)

On-premise deployments often reach services signed by a private Certificate Authority: an internal LLM endpoint, an SMTP relay, or a TLS-intercepting egress proxy. The backend validates those certificates against the public CA bundle, so an unknown issuer fails with:

[SSL: CERTIFICATE_VERIFY_FAILED] certificate verify failed: unable to get local issuer certificate

This is what you see in Settings > AI when testing an LLM configuration whose endpoint is served by an internal PKI.

1. Identify the missing certificate

openssl s_client -showcerts -connect llm.internal.example.org:443 \
  -servername llm.internal.example.org </dev/null 2>&1 \
  | grep -E "^ [0-9] s:|^ [0-9] i:|Verify return code"

Observation	Cause	What to collect
A single certificate, issued by a known public CA	Incomplete chain served	The intermediate certificate
Issuer is an internal name	Private PKI	Root and intermediate
Issuer is the egress proxy	TLS interception	The proxy CA

warning

Python does not fetch missing intermediates through the AIA extension, unlike web browsers. If the server does not serve its intermediate certificate, adding only the root CA will not fix the error — the intermediate itself must be provided.

2. Provide the certificates to the backend

PEM files named *.crt or *.pem placed in /etc/qalita/ca-certificates are merged with the public CA bundle when the container starts, and exported through SSL_CERT_FILE and REQUESTS_CA_BUNDLE. Merging (rather than replacing) keeps public CAs trusted, so the license registry and cloud providers keep working.

Kubernetes

kubectl create secret generic qalita-ca-bundle \
  --namespace qalita-platform \
  --from-file=internal-root.crt \
  --from-file=internal-intermediate.crt

backend:
  caBundle:
    existingSecret: qalita-ca-bundle

Docker Compose

backend:
  volumes:
    - ./backend/certs:/etc/qalita/ca-certificates:ro

The mount path can be changed with backend.caBundle.mountPath (Helm) or the QALITA_CA_CERTS_DIR environment variable; the merged bundle is written to /tmp and can be relocated with QALITA_CA_BUNDLE.

3. Verify

The backend logs the certificates it trusts at startup:

>> TLS Trust Store Check
>> Trusting custom CA: /etc/qalita/ca-certificates/internal-root.crt
>> Custom CA bundle ready: /tmp/qalita-ca-bundle.crt

Then test the endpoint from inside the container:

kubectl exec deploy/<release>-backend -- \
  python -c "import httpx; print(httpx.get('https://llm.internal.example.org/models').status_code)"

Retesting the configuration in Settings > AI should now succeed.
